Description

TrailFX provides LED light solutions to perform for work, play, and everyday life. Quality materials and workmanship go into each of our applications, including use of Cree and OSRAM LED’s providing our lights with 30,000+ working hours. Buy once and with confidence knowing all TrailFX LED light solutions are covered by a Limited Lifetime Warranty.
3 Inch Cube
20 Watt
90 Degree Flood Beam
1620 Raw Lumens/ 940 Effective Lumens
6 Clear CREE LED 3 Watt Bulbs
Polycarbonate Lens
Black Die-Cast Aluminum Housing
IP67 Rated
30,000 Working Hours
Set Of 2

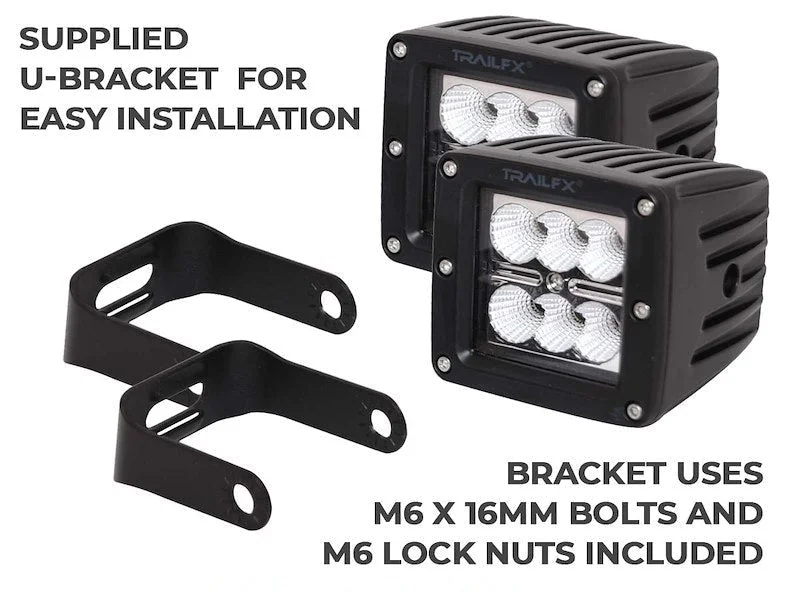

W/Wiring Harness/Btm Mnt Hrd

Features and Benefits

Higher Effective Lumens Fully Illuminates The Night Sky
Die-Cast Aluminum Housing For Durability And Long Life
90 Degree Flood Beam Creates A Wider Angle Of Light To See Objects Both Up Close And To The Side Of The Trail
IP67 Rating For Dust, Sand, And Dirt Protection, Along With A High Water Resistance To Keep The Lights At 100 Percent Functional Capacity Regardless Of The Outside Elements
30,000+ Hours Of Working Life Assures The Light Will Operate For Work, Play, And Everyday Life
Lower Power Consumption Allows Extra System Wattage For Additional Accessories

Light Type: 90 Degree Flood Beam
Title: Driving/ Fog Light – LED
Shape: Cube
Number Of LED’s: 6
Light Output: 1620 Raw Lumens/ 940 Effective Lumens
Wattage: 18 Watt
Voltage Rating: 10 To 30 Volt
Ampere Rating At 12 Volts: 1.15 Amp
Ampere Rating At 24 Volts: 0.61 Amp
Diameter: Not Applicable
Length: 3.14 Inch
Width: 3.22 Inch
Height: 2.95 Inch
Mounting Length: 3.14 Inch
Light Color: Clea
Lens Material: Polycarbonate
Housing Finish: Powder Coated
Housing Color: Black
Housing Material: Die-Cast Aluminum
Mounting Style: Bottom Mounting
Includes Wiring Harness: Yes
Includes Mounting Hardware: Yes
Quantity: Set Of 2
